TOZ-35M Free Pistol & IZH-35M Rapid Fire Pistol & Baikal MCM Stnd Smallbore Pistol

Jump to Latest
32K views 8 replies 4 participants last post by  aom22
#1 · (Edited)
IZH-35M Rapid Fire Pistol - IZHMECH

Biakal IZHEVSKY MEKHANICHESKY ZAVOD

IZHMECH MODEL IZH-35M

The IZH-35M is the main stay of the Russian Olimpic .22 International Pistols.
The IZH-35M is typical Russian, crudely finished, cheaply made and totaly reliable.
Using a unique feed that keeps the bore very low in the hand,
the IZH is a truely competitive pistol that retails for less then $500.
Click to expand...



Ideally meets the regulations of world-class shooting events for "standard pistol" at 25 m.
The Russia's A-class shooters with IZH-35Đś pistol used to win major rewards on the Olympic Games,
World and Europe Championships. The trigger mechanism can be adjusted for trigger pull,
let-off pressure, slack and trigger stop. Blow-back operated.

Original design of a firing mechanism along with a top position of hammer pin allows minimizing
distance between the bore axis and palm bearing surface to enable high shooting stability.
Automatic safety. Micrometric, windage-elevation adjustable sight.

On order available with:

additional non-automatic safety;
non-automatic slide stop;
magazine-release button;
Weaver rail fixed on the top to mount a complementary scope or red-dot sight
for non-traditional shooting events.

Cartridge: .22LR
Magazine capacity: 5 rounds
Barrel length: 153mm
Sighting radius: 220mm
Adjustable trigger pull: 10...12.5 N
Adjustable trigger travel: 1...2.5mm
Overall dimensions: 300x150x50mm
Weight, unloaded: 1.2 kg, max
Click to expand...




Accuracy Claim: IZH35M Scrapbook
My initial accuracy was disappointing, but after scrubbing the bore vigorously
on the same gunsmith's recommendation, after 5 fouling shots, almost everything when
into at least 10-ring groups at 50 yds, usually better.
Click to expand...
Factory Information: Biakal IZHEVSKY MEKHANICHESKY ZAVOD
Factory Manual: Izmash IZH35M PDF Manual
Describe & Specs: My Tribute to the Baikal IZH35M
Source and pricing: RONIN Sports Go To: Products - Firearms - Search Manufactures: Baikal
Accessories: D J Precison Inc.

BAIKAL IZH-35M .22
RPG Estate Firearms



#2 · (Edited)
Models Based on the IZH-35

Models Based on the IZH-35:
Walther KSP 200, Walther KSP 200 Devil

KSP200 Target Pistol



History of the Walther KSP200
Saturday, 12 June 2004
The IZH-35M, produced by Baikal is the core product of the Walther KSP.
Walther buy's the gun without a handgrip. Walther deassamble's the gun, polishes the inside,
assambles the gun.
Because the IZH-35M has no slide catching stops, Walther inserts one for you.
Then the Moroni grips are put on the gun.

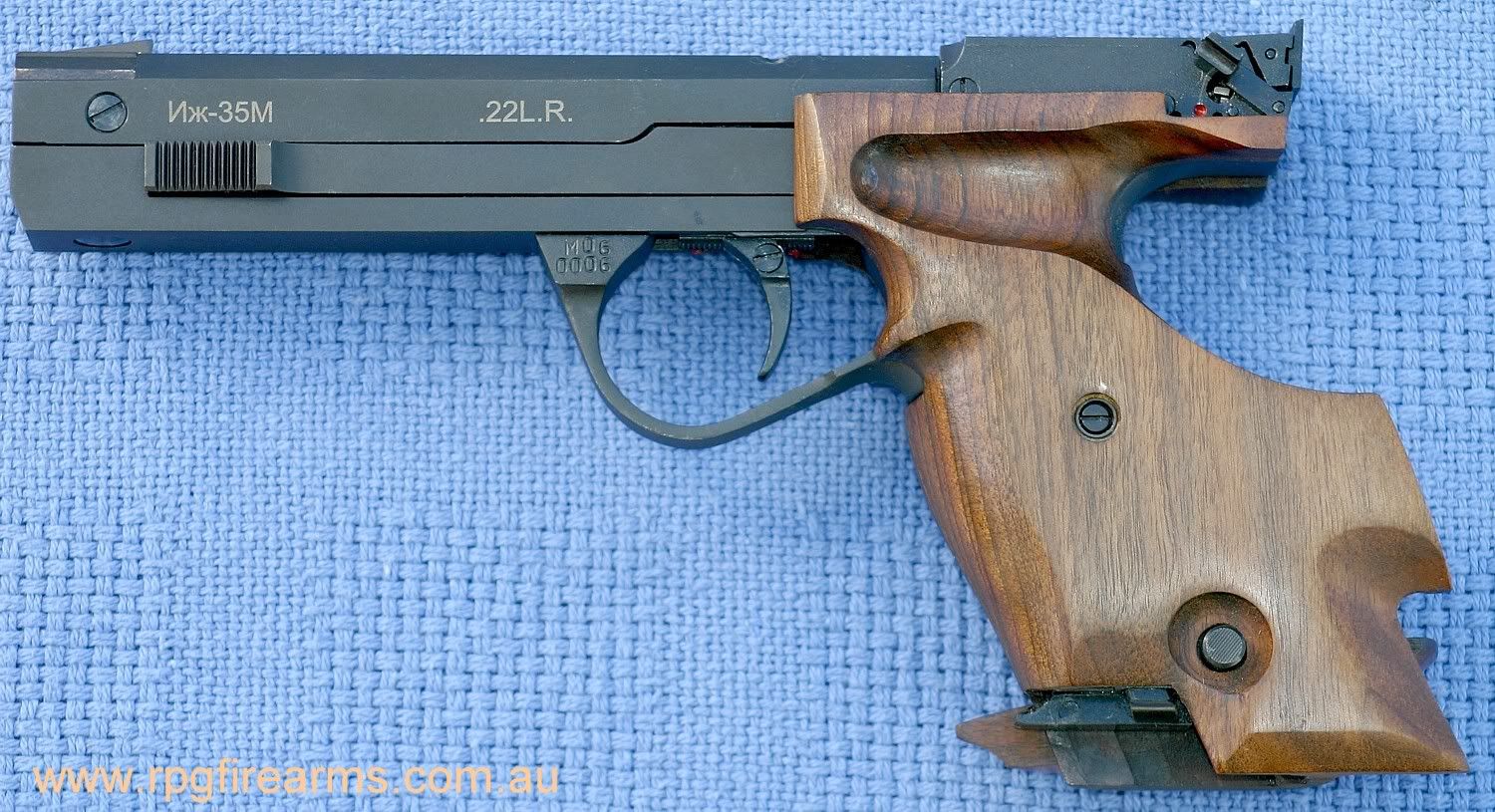

On the right you see a picture of the Russian IZH-35M.
You can clearly see the equalities to the Walther Ksp 200.

The IZH-35M is the main stay of the Russian Olimpic .22 International Pistols.
The IZH-35M is typical Russian, crudely finished, cheaply made and totaly reliable.
Using a unique feed that keeps the bore very low in the hand, the IZH is a truely
competitive pistol that retails for less then $500.

The quality of this pistol is most readily displayed by the fact that Walther is refining
these pistols and then puting their own name on them has seen on this page.
The Moroni grips that are part of the Walther version realy make the pistol, and
of course drive up the cost. It is also available in a right or left handed version from Walther.

The KSP Devil appairs to only be available from Walther Germany from
the Walther Target Shop. I found this interesting since no other pistols listed on
the Walther page include the Target Shop designation
Click to expand...
Walther KSP200


Feinwerkbau AW 93 Sporting Pistol

#6 ·
IZH-35M Standard Target Self-loading Pistol

RPG ESTATE FIREARMS: Pistols



BAIKAL IZH-35M .22 NEW So good, Walther sold them as the "KPS 2000"! A very competitive standard gun!
Comes with two mags etc New stock coming in March, price aprox--$1350
Click to expand...
Baikal (Not really Another Russian Arms Factory)
Baikal is a foreign trade organization this is similar to North China Industries (NORINCO).
This was a governmental organization that was used to market Soviet goods abroad.
Similarly, all shotguns, both of the Izhevsk and Tula manufacture, were branded as BAIKAL.
The largest supplier of shotguns was the Izhevsk Mechanical Plant.
Click to expand...
Since the end of the Cold War, Russian Industries have been in a great state of flux.
Production of the IZH-35M are an on-again, off-again proposition.
There are new IZH-35M's to be had.
But, when encountered, they should be NEW ... oldstock.
When you find one ... don't hesitate to buy it - it will, most likely, sell quickly

#9 · (Edited)
